Actros Rigid

New Mercedes-Benz Actros Rigid

The New Actros. Rigid trucks for short-radius distribution.

A truck ahead of its time. The new Actros meets the continually growing demands in heavy-duty distribution haulage more effectively than ever. With enhanced efficiency. With unique comfort. And with improved reliability.

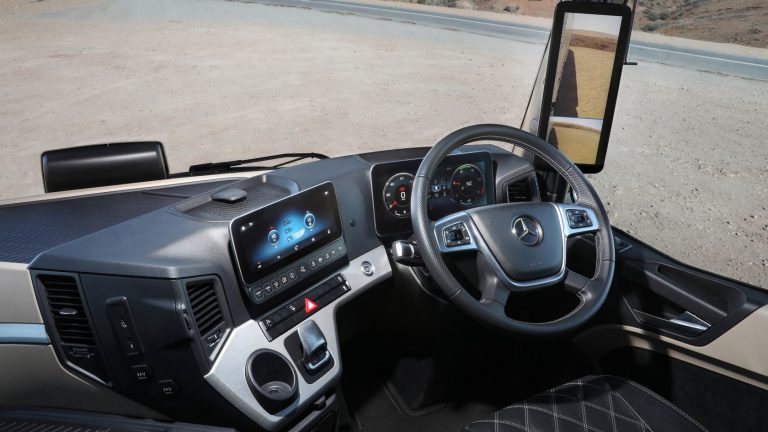

Actros Rigid Comfort.

Comfort.

Comfort is more than just luxury. The new Actros is the Mercedes-Benz contribution to transport industry for higher standards in heavy-duty distribution haulage, whilst prioritising the improvement of pleasant working and driving conditions.

Modern, ergonomic, practical, motivating and not least of all efficiency-boosting. Whether you are a driver or fleet operator, we're convinced you'll be delighted by the workplace in the new Actros. It offers the driver better working and driving conditions, and through intelligent networking with headquarters and logistics processes, it has the potential to contribute to even better performance1.

[1] Compared to the previous model.

Efficiency.

The new Actros strives to provide reliable, fuel-saving vehicle technology, to promote lower costs and increase overall profitability. In a nutshell: greater efficiency. Lower fuel consumption is a crucial contributory factor to economic efficiency. This is an advantage that the Actros has demonstrated in daily use3.

The new Actros now boasts additional fuel savings from it's already fuel efficient predessor. This is achieved from further optimisation of the drivetrain, the use of MirrorCam2 and from the introduction of Predictive Powertrain Control2, which is now also able to contribute to fuel savings on roads and highways.

[2] Optional equipment.

[3] Based on customer feedback.

Actros Rigid Efficiency.

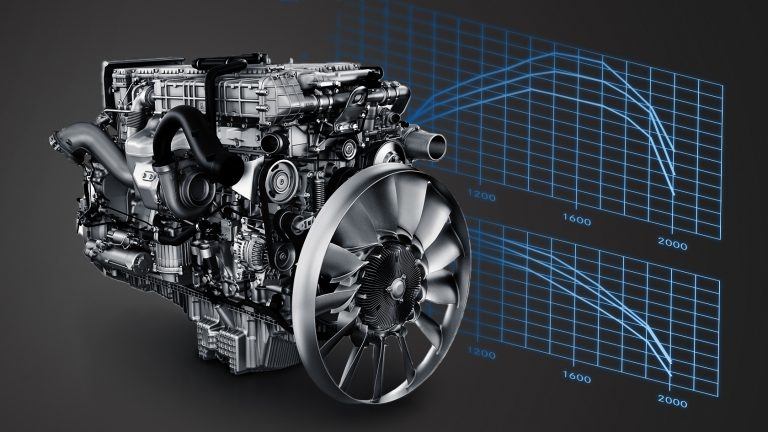

Actros Rigid Engine.

Engine.

Economical, reliable Euro VI engines in four displacement categories. Future-oriented technology, up to 460 kW (625 hp) and 3000 Nm maximum torque.

Drive Train

  • Mercedes-Benz OM 936 7.7 litre engine, OM 470 10.7 litre engine, and OM 471 12.8 litre engine options
  • Fully automated 8 and 12 speed Mercedes-Benz PowerShift transmission
  • Fuel efficient single reduction axles
  • Electronic Braking System incorporating ABS, Stability Control Assist, Hill Hold Assist and Traction Control
Actros Rigid Drive Train

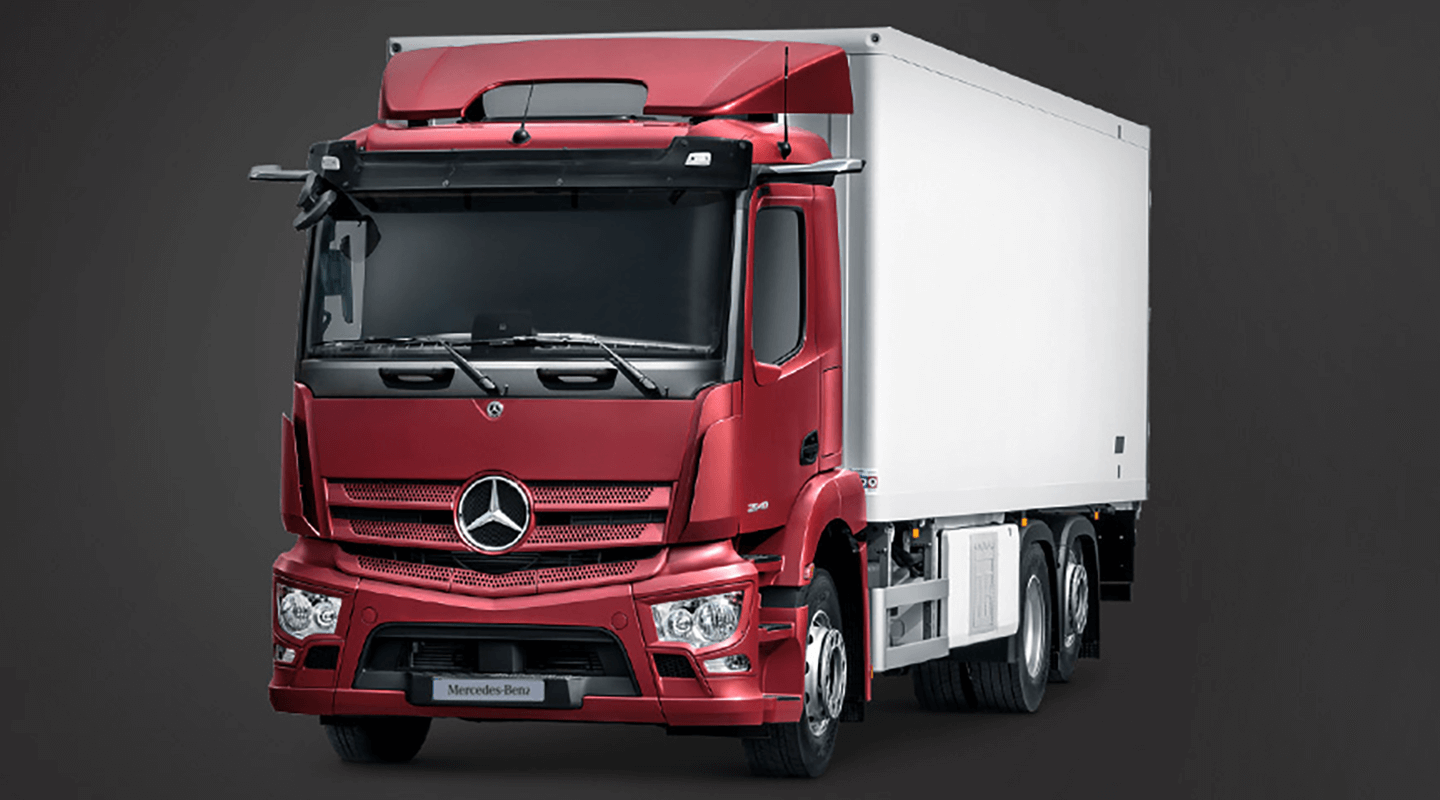

Actros Rigid Cab

Cab

With three variants, the new Actros is able to offer a suitable cab to enable further efficient ways of working and easy handling in the distribution sector from 18 t.

If the full body length is required, the ClassicSpace M-Cab is the top choice. The ClassicSpace L-cab is suited to longer, full-day and overnight runs, for example, with two engine tunnel variants available - 320mm, or 170mm. A good overall view and high payload capacity are common to all.

Specifications

Actros 1835

  • Power: 354 hp
  • Torque: 1400 Nm
  • Drivetrain: 4x2 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm

Actros 1840

  • Power: 394 hp
  • Torque: 1900 Nm
  • Drivetrain: 4x2 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 1843

  • Power: 428 hp
  • Torque: 2100 Nm
  • Drivetrain: 4x2 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 1846

  • Power: 455 hp
  • Torque: 2200 Nm
  • Drivetrain: 4x2 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 with 320mm ET

Actros 2530

  • Power: 299 hp
  • Torque: 1200 Nm
  • Drivetrain: 6x2 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab Classic 2.3 320mm ET

Actros 2535

  • Power: 354 hp
  • Torque: 1400 Nm
  • Drivetrain: 6x2 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 2540

  • Power: 394 hp
  • Torque: 1900 Nm
  • Drivetrain: 6x2 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 2630

  • Power: 299 hp
  • Torque: 1200 Nm
  • Drivetrain: 6x4 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab Classic 2.3 320mm ET

Actros 2635

  • Power: 354 hp
  • Torque: 1400 Nm
  • Drivetrain: 6x4 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 2640

  • Power: 394 hp
  • Torque: 1900 Nm
  • Drivetrain: 6x4 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 2643

  • Power: 428 hp
  • Torque: 2100 Nm
  • Drivetrain: 6x4 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 2646

  • Power: 455 hp
  • Torque: 2200 Nm
  • Drivetrain: 6x4 Rigid
  • Wheelbase: 5.5 metres
  • Cab: M-Cab & L-Cab Classic 2.3 320mm ET

Actros 2651

  • Power: 510 hp
  • Torque: 2500 Nm
  • Drivetrain: 6x4 Rigid
  • Wheelbase: 5.5 metres
  • Cab: L-Cab ClassicSpace 2.3 170mm ET

Actros 2643

  • Power: 530 hp
  • Torque: 2600 Nm
  • Drivetrain: 6x4 Rigid
  • Wheelbase: 5.5 metres
  • Cab: L-Cab ClassicSpace 2.3 170mm ET
